SECTION NODES - EXTERNAL AESTETIC VARIANTS
Thermal break aluminum systems, for overlapping door and 3 aesthetic frame configurations: shaped, rounded, flat;
Thermal break aluminum systems, for coplanar door and 3 aesthetic frame configurations: shaped, rounded, flat;
Thermal break aluminum / wood systems, for overlapping door and 3 aesthetic frame configurations: shaped, rounded, flat;
Thermal break aluminum / wood systems, with coplanar door and 3 aesthetic frame configurations: shaped, rounded, flat.
A42/002
node 119mm
shaped frame 105mm
Door 93mm
A42/001
node 114mm
ROUNDED frame 100mm
door 93mm
A42/003
node 104mm
flat frame 90mm
door 93mm
A42/005
node 119mm
shaped frame 105mm
door 103mm
A42/004
node 114mm
ROUNDED frame 100mm
door 103mm
A42/006
node 104mm
flat frame 90mm
door 103mm
W42/002
node 124mm
shaped frame 105mm
door 98mm
W42/001
node 119mm
ROUNDED frame 100mm
door 98mm
W42/003
node 109mm
flat frame 90mm
door 98mm
W42/005
node 124mm
shaped frame 105mm
door 108mm
W42/004
node 119mm
ROUNDED frame 100mm
door 108mm
W42/006
node 109mm
flat frame 90mm
door 108mm
PULL HANDLES
Pull handles in stainless steel, round, square, flat and arched, combinable in all models. Black variant (code 549).
code
D60070
D60071
D70065
D70066
D70114
D70068
D60106
D70110
Round section
handle
D.25 L.500
D.30 L.650
D.30 L.900
D.30 L.1150
D.30 L.1500
D.30 L.1600
D.35 L.1800
D.35 L.2000
code
D60080
D60081
D60082
D60083
Curved Round
section handle
D.25 L.600
D.30 L.750
D.30 L.1050
D.30 L.1300
code
D60090
D60091
D70071
D70072
D70116
D70074
D70075
D60092
D60084
D70111
SQUARE SECTION
HANDLE
D.25 L.500
D.30 L.650
D.30 L.900
D.30 L.1150
D.30 L.1500
D.30 L.1600
D.30 L.1800
D.35 L.900
D.35 L.1150
D.35 L.2000
code
D70078
D70079
D70118
D70081
D70082
U-SHAPED SQUARE
SECTION HANDLE
D.30 L.930
D.30 L.1230
D.30 L.1500
D.30 L.1630
D.30 L.1830
code
D70070V
45° head square
section handle
D.35 L. variable
code
D70098
D70099
D70100
D70101
D70120
D70102
D70103
FLAT SECTIOn
HANDLE
D.40x10 L.500
D.40x10 L.650
D.40x10 L.900
D.40x10 L.1150
D.40x15 L.1500
D.40x10 L.1600
D.40x10 L.1800
code
D70129
arched flat
section handle
section 40x10
special L. 1500
code
D70130
arched FLAT
section handle
section 40x10
special L. 1430
*Some pull handle measures do not fit doors with engravings or stainless steel applications
BUILT-IN PULL HANDLE
Built-in pull handle with or without cover, possibility of adding LEDs on some codes.
Wine-red
finish
D70201.518
D70202.518
D70203.518
D70204.518
D70205.518
D70206.518
D70207.518
D70208.518
black
finish
D70201.549
D70202.549
D70203.549
D70204.549
D70205.549
D70206.549
D70207.549
D70208.549
SATIN S/steel
finish
D70201
D70202
D70203
D70204
D70205
D70206
D70207
D70208
built-in
pull handle
L.250
L.500
L.700
L.900
L.1500
L.1600
L.1800
L.full height
Wine-red
finish
D70209.518
D70210.518
D70211.518
D70212.518
D70213.518
D70214.518
D70215.518
D70216.518
black
finish
D70209.549
D70210.549
D70211.549
D70212.549
D70213.549
D70214.549
D70215.549
D70216.549
SATIN S/steel
finish
D70209
D70210
D70211
D70212
D70213
D70214
D70215
D70216
cover for
built-in
pull handle
L.250
L.500
L.700
L.900
L.1500
L.1600
L.1800
L.full height
BUILT-IN PULL HANDLE WITH BIOMETRIC READER
Built-in pull handle with biometric reader
code
D60042
D60043
D60044
Built-in pull handle
with biometric reader
L. 900
L. 1500
L. full height
PULL HANDLE WITH BIOMETRIC READER
Pull handle with biometric reader
code
D60058
tubolar pull handle
with biometric reader
L. 1500
INTEGRATED TECHNOLOGY
Biometric reader, transponder reader and wireless keypad.
D60055
Wireless technology
associated with a
fingerprint reader for
access control.
D60053
The system identifies
the data transmitted by
the transponder to the door
and it opens automatically.
D60057
Wireless technology
associated with a numeric
keypad with maximum
security guaranteed by a
combination access.
ARCHED HANDLES
Stainless steel arched handles, which can be combined with most of the models.
D70124
D70125
D70126
D70127
D70128
HANDLES
Round, square, oval and rectangular handles, which can be combined internally in all models.
S/STEEL finish D60060
black finish D60060.549
S/STEEL finish D60061
S/STEEL finish D70138
S/STEEL finish D70134
S/STEEL finish d70136
S/STEEL finish D70131
S/STEEL finish D60062
S/STEEL finish d70137
S/STEEL finish D70133
S/STEEL finish D70151
S/STEEL finish D70150
S/STEEL finish D60109
black finish D60109.549
PASS-THROUGH HANDLES
The pass-through handles, oval and rectangular for indoor / outdoor
S/STEEL finish D70135
S/STEEL finish D70132
S/STEEL finish D60068
black finish D60068.549
LOCKS
Security locks, high security, with seven locking points, and motorized locks that can be combined with all models.
D6001
RC3 certified three-point Security lock with hooks
D6002
Security lock with seven locking points with hooks and punches RC4 certified
D6004
Motorized Security lock with seven closing points with hooks and punches certified Rc4
ELECTRIC STRIKE
Electric strike with open stop. The open stop does not ensure the closing of the door and requires the integrated door closer cod. D60190. The door closer must be coordinated with the door as it is integrated.
cODe D60031
CYLINDERS
Security or very high security cylinders, version with key and with key / knob.
D6013 key to key
safety
cylinder
D6017 key to key
high safety
cylinder

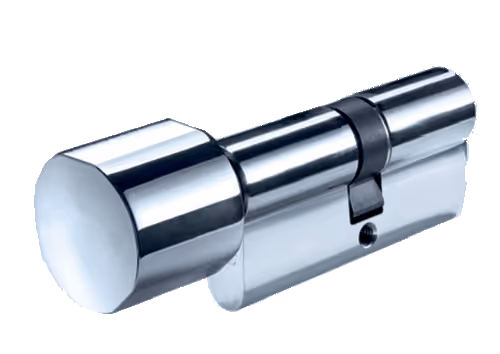

D6013P key and
knob safety
cylinder
D6017P key and
knob high
safety cylinder
D6013RL safety
cylinder
free rotation
D6017RL HIGH safety
cylinder
free rotation
HINGES
Exposed filiform hinges with silver, white and customizable matching colors.
D60001.401
Filiform hinges with silver
finish
D60001.001
Filiform hinges with white
finish
D60001.RAL
filiform hinge available
in matching color
*D60002
Concealed hinge kit
with 180 ° rotation
*Concealed hinges cannot be combined with anti-burglary safety bolts, with nickel or white finish
DOOR CLOSER
Integrated retractable overhead door closer. Available on request, recommended in case of electric strike with open function. The door closer must be ordered along with the door as it is integrated (dimensional and capacity limits, consult before ordering).
code D60190
STAINLESS STEEL LOWER EXT. PROTECTION
Lower ext. protection in stainless steel
lower linear
protection for
overlapping door
Code
D10028
D10029
D10018
Protruding LOWER
linear protection
coplanar door
Code
D10028S
D10029S
D10018S
LED LIGHTS
Led lights on the panel, lower side on the floor, or on the built-in handle
LED LIGHTS
ON panel
LED LIGHTS
ON THE FLOOR
LOWERSIDE
LED LIGHTS
ON THE BUILT-IN
PULL HANDLE
ON CODES
L. 900 D70204, 2 leds
L. 1500 D70205, 3 leds
L. 1600 D70206, 3 leds
L. 1800 D70207, 5 leds
L. FULL HEIGHT D70208, 5 leds
GLASSES
A selection.
SATIN WHITE
satin with transparent
or opaque stripes
Filiform
pOINTS
nature
Cathedral
Wadi
white chinchilla
